1870 Type I Reverse Variety 10


Obverse 6.4	Reverse J

Obverse Diagnostics

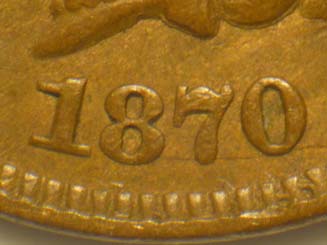

Date Position

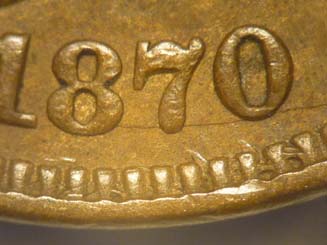

Misplaced Digits In The Denticles

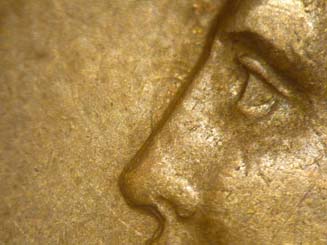

Clash Mark In Front Of Eye

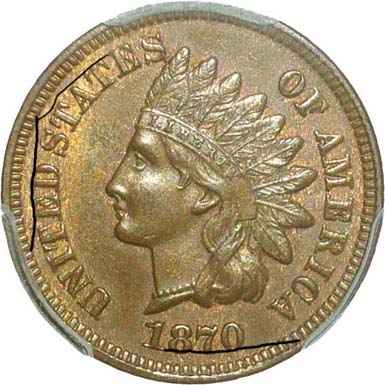

Obverse 6.5 Die Crack Mapping

Reverse Diagnostics

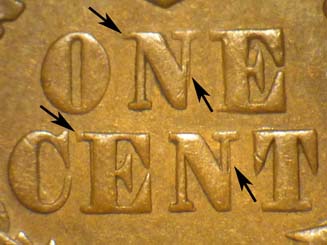

Reverse J Hub Doubling

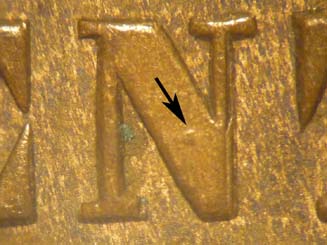

Lump On The N Of CENT

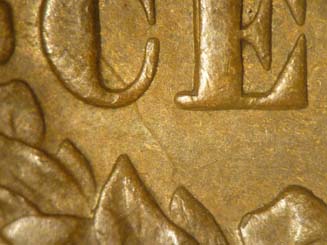

Clash Mark Through (C)ENT

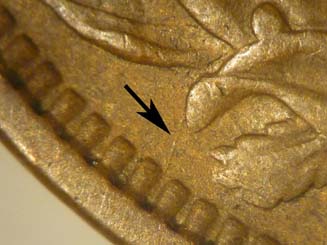

Die Line From First Olive leaf

Reverse J.2 Die Crack Mapping

The third usage of Obverse 6. Obverse 6 is identified by date placement at B and approximately 6 sets of misplaced digit punch impressions in the denticles below the date. Obverse 6 has acquired clash marks in front of the eye of Miss Liberty and has developed the following die cracks:
1. Die crack from the rim at 5:00 through the base of the digits of the date.
2. Die crack from the denticles at 8:15, connecting the tops of ED of UNITED and exiting at 10:00.
Obv. 6.5: Obverse 6 has developed a die crack from the denticles at 10:00 that connects the 'STA(TE)S'.

Reverse J is rotated 8 degrees clockwise and is identified by a raised lump on CE(N)T and a heavy die line from the first olive to the denticles. Reverse J has acquired a clash mark through (C)ENT.

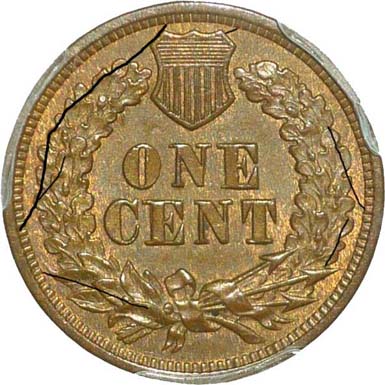

Rev. J.2: Reverse J has developed the following die cracks:
1. Die crack from the denticles at 3:00 upward through the wreath to a point at 2:00.
2. Light die crack from the denticles at 8:00 downward through the lower wreath to a point at 6:30.
3. Die crack from the rim at 8:30 upward through the outer edge of the left wreath to the denticles at 11:45.

Comments: The multiple misplaced digit punch impressions of Obverse 6 are quite interesting, with the number of misplaced digits far exceeding any other obverse in the entire series.

Reverse J was initially hubbed with a Type I reverse working hub, then subsequently hubbed with a Type II reverse working hub. The resulting hubbing from two different designs from working hubs created class III design hub doubling visible primarily on (ON)E and C(EN)T.

Obverse 6 was peviously in service paired with Type I Reverse D during the 1870 Type I Variety 4 Die Pairing.

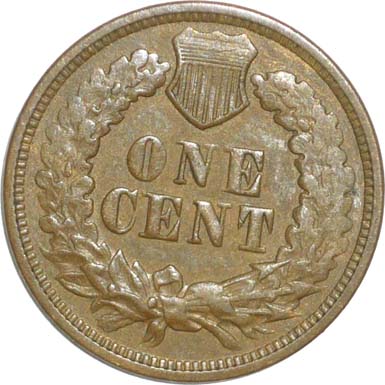

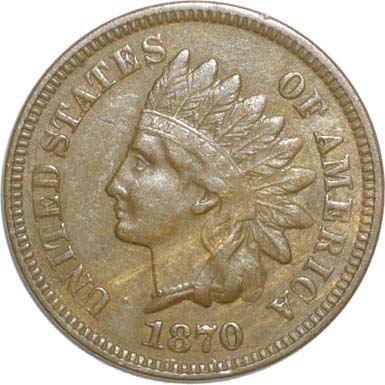

Plate Coin (Variety 10): D. Poliquin Collection, VF20

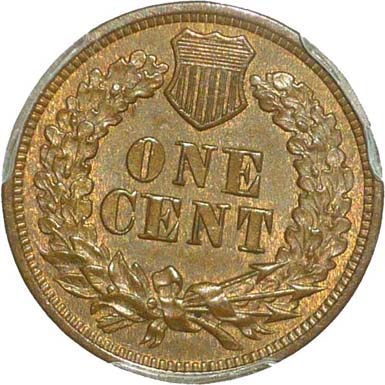

Plate Coin (Variety 10a): Robert Malo, Jr. Collection, PCGS MS63BN

Die States For 1870 Type I Reverse Variety 10

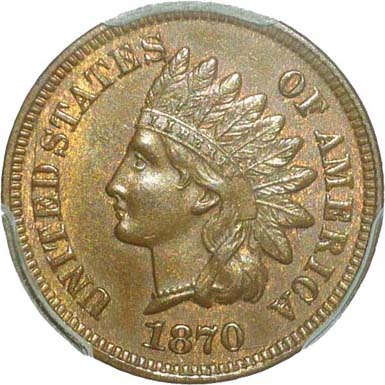

1870 Type I Reverse VARIETY 10 OBVERSE 6.4 REVERSE J
1870 Type I Reverse VARIETY 10a OBVERSE 6.5 REVERSE J.2
